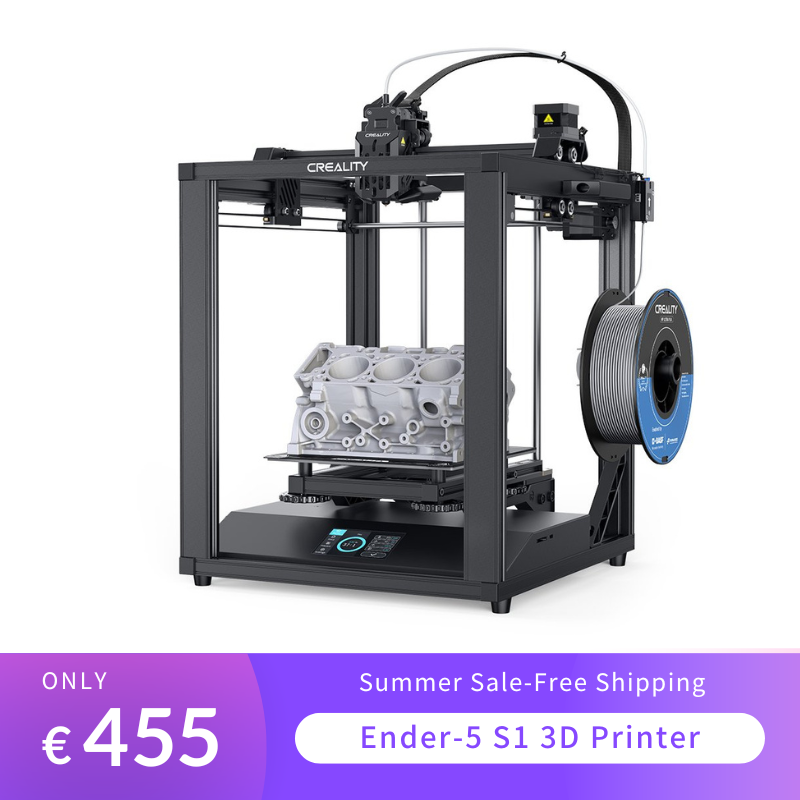

2023 Hot Sale♥ Creality Ender-5 S1 3D Printer- up to 250mm/s (5 times) printing speed
Fast & Efficient Printing
CR Touch auto-leveling, upgraded motion system for 2000mm/s² acceleration and up to 250mm/s (5 times) printing speed*. Each X/Y/Z axis is driven by a high-precision stepper motor. High-torque Y-axis 42-48 motor for responsive and precise motion.
Direct Extrusion Adapted to Flexible Filaments
The all-metal "Sprite" direct extruder features dual gears of a 1:3.5 gear ratio. It delivers a powerful and uniform 80N extrusion force.
Hotend Upgrade for High-temp Printing
Titanium Alloy Heatbreak: Low thermal conductivity for blocking heat creep. Able to tame up to 300℃. Corrugated Heatsink: 2.5 times surface area that is rapidly air-cooled by a silent axial flow fan. Large Melting Chamber: 50mm³ melting chamber surrounded by a large 4000mm³ heater block
Cube Frame Structure-Stable and Delicate
An all-metal cube frame goes with the classic Cartesian structure. The stability is enhanced by thick linear shafts, extra gussets, two cantilevers, and silicone bed mounts. An all-metal cube frame with a classic Cartesian structure is not only beautiful but also very stable, allowing you to print your models even more perfectly.
Quicker Expert-Level Calibration
Level the bed quickly by CR Touch auto-leveling and auxiliary leveling, or offset the Z-axis height at 0.01mm accuracy. Get the perfect first layer with less hassle.
Straightforward Touch Screen UI
4.3-inch touch screen featuring a wide viewing angle, sensitive response, and a tabbed user interface. A temperature PID control page is also added for easy adjustment.
Sticky and Bendable PC Build Surface
The PC spring steel sheet has two notches and a magnetic base for quick installation. The frosted PC surface is sticky to models. After printing, the model can be removed right away with a slight bend.
Build Volume: 220*220*280mm
Net Weight: 12.1kg
Gross Weight: 14.7kg
Extruder Type: "Sprite" dual-gear direct drive extruder
Extruder Material: All metal
Leveling Mode: CR Touch Auto leveling
Mainboard: 32-bit silent mainboard
Display Screen: 4.3-inch color touch screen
Printing Speed: ≤250mm/s
Typical Printing Speed: ≤120mm/s
Nozzle Type: Brass nozzle x1
Nozzle Diameter: Standard 0.4mm
Printing Accuracy: ±0.1mm
Layer Height: 0.05-0.35mm
Filament Diameter: 1.75mm
Nozzle Temperature: ≤300°C
Heated Temperature: ≤110°C
Build Surface: PC spring steel sheet
Power Loss Recovery: Yes
Filament Runout Sensor: Yes
Rated Voltage: 100-120V~, 200-240V~, 50/60Hz
Rated Power: 350W
File Transfer: SD card, USB Type-C cable
File Formats: STL, OBJ, AMF
Supported Filaments: PLA, PETG, ABS, TPU, PC, ASA, HIPS
Slicing Software: Creality Slicer, Creality Print, Cura, Repetier-Host, Simplify3D
UI Languages: English, Spanish, German, French, Russian, Portuguese, Italian, Turkish, Chinese
